Product Description:
Granulation drums (Rotary drum granulator machine) employs water, steam, or similar substances, which are sprayed at high speed via a spray gun or atomizer to form fine droplets or mist. These fine droplets and mist then act to agglomerate the powdered materials within the granulation cylinder into granules.
Features:
- High granulation rate, with a small amount of return material, can be re granulated;
- Heating with steam to increase the temperature of the material, reducing the moisture content of the material after balling, and improving the drying efficiency;
- Using rubber engineering plastic as the inner lining, the raw material is not easy to stick to the cylinder, and it plays a role in anti-corrosion and insulation;
- Large output, low energy consumption, and low maintenance costs；
- Long service life, convenient operation and maintenance.
Technical Parameters:
| Model |
Dip angle
(°)
|
Internal diameter
(m)
|
Length
(m)
|
Speed
(r/min)
|
Power
(kw)
|
Capacity
(t/h)
|
Outline dimension
(L*W*H)
|
| ZG1.2*4 |
2-2.5 |
1.2 |
4 |
17 |
5.5 |
1-3 |
4.6*2.2*2.0 |
| ZG1.4*5 |
2-2.5 |
1.4 |
5 |
14 |
7.5 |
3-5 |
4.8*2.8*2.3 |
| ZG1.5*6 |
2-2.5 |
1.6 |
6 |
11.5 |
11 |
5-8 |
7.0*3.2*3.1 |
| ZG1.8*7 |
2-2.5 |
1.8 |
7 |
11.5 |
15 |
8-10 |
8.5*3.5*3.3 |
| ZG2.0*8 |
2-2.5 |
2.0 |
8 |
11 |
18.5 |
10-15 |
9.1*3.6*3.5 |
| ZG2.2*8 |
2-2.5 |
2.2 |
8 |
10.5 |
22 |
15-20 |
9.5*4.4*3.9 |
Applications:
Suitable for processing powdery materials into ball type granules, widely used in compound fertilizer plants, organic fertilizer plants, sludge waste treatment plants and mines, chemical industry, cat little, animal feed and other industries.

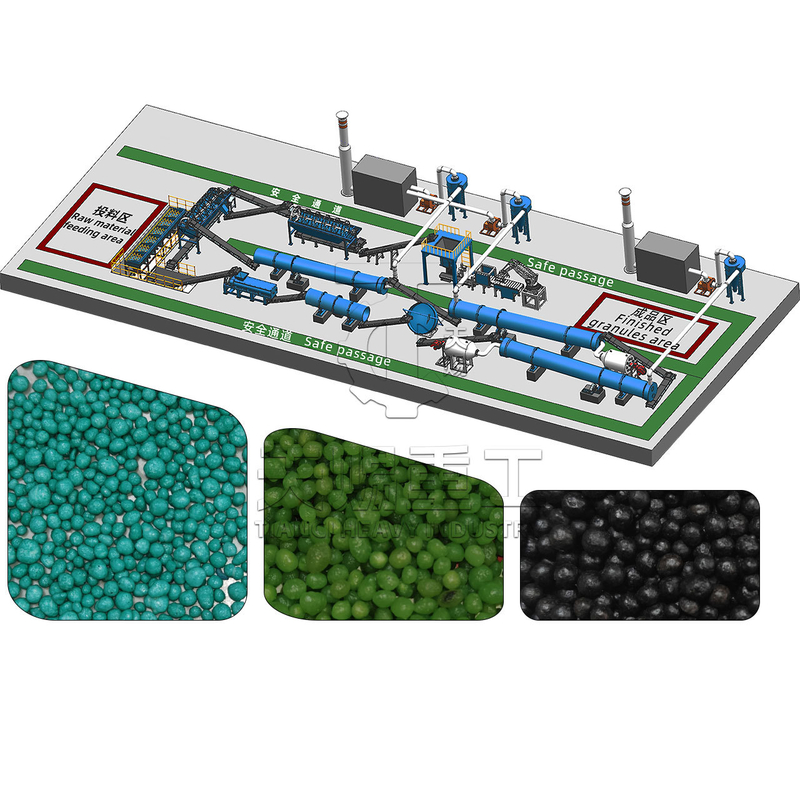

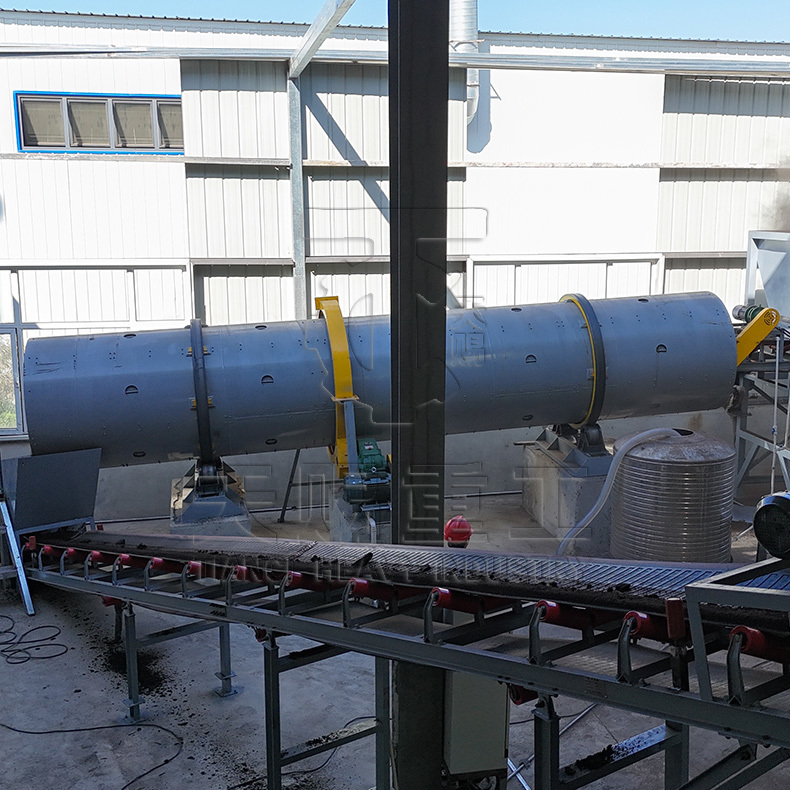

Production line site:
Tianci Heavy Industry focuses on technological innovation and product quality, provides customers with one-stop service, is market-oriented, seeks development through innovation, survives by quality, and wins the trust of customers with perfect after-sales service.
Package and Delivery:
For small single machines, we usually wrap them with protective film and then put them in a sturdy wooden box;
For large equipment or multiple production line equipment, we will place them in containers and secure them with steel wires.
So there's no need to worry about transportation issues.
Company introduction:
Zhengzhou Tianci Heavy Industry Machinery Co., Ltd. is an enterprise specializing in agricultural environmental protection technology engineering, equipment development research and production! Its main products are machinery and equipment required for organic, and compound and BB fertilizers with an annual output of 10,000 to 200,000 tons! Especially for the granulation equipment of powder materials, we have more than 20 years of production experience and 10 years export experience.
FAQ:
Q: What is the size of the finished granules produced by the granulation drums?
A: The finished granules produced by the granulation drums typically range in size from 2 to 8 mm.
Q: Can you provide installation services for the drum granulator after purchase?
A: Yes, we can. Our experienced engineers will be dispatched to the site to guide the on-site installation and ensure the equipment operates normally.
Q: What is the hourly output of the drum granulator?
A: The hourly output of the drum granulator is 1–25 tons per hour. For customers with higher output requirements, we also offer customized solutions.
Q: What is your main products ?
A: Our main products include complete equipments of fertilizer production line. There are many types of granulator and some auxiliary equipment (drying&cooling machine, screening machine, coating machine, packaging machine and so on).
Q: How to choose the right fertilizer equipment ?
A: Inder to choose the appropriate equipment, we need to know your fertilizer raw materials and production capacity, so that we can give you a right solution. It’s best for us if you can provide the production area.
